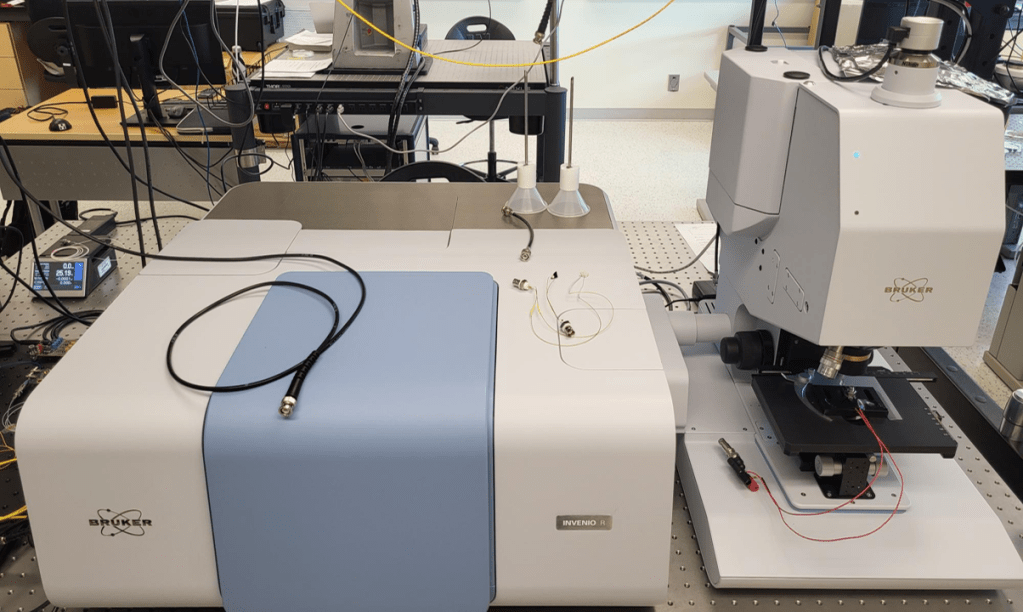

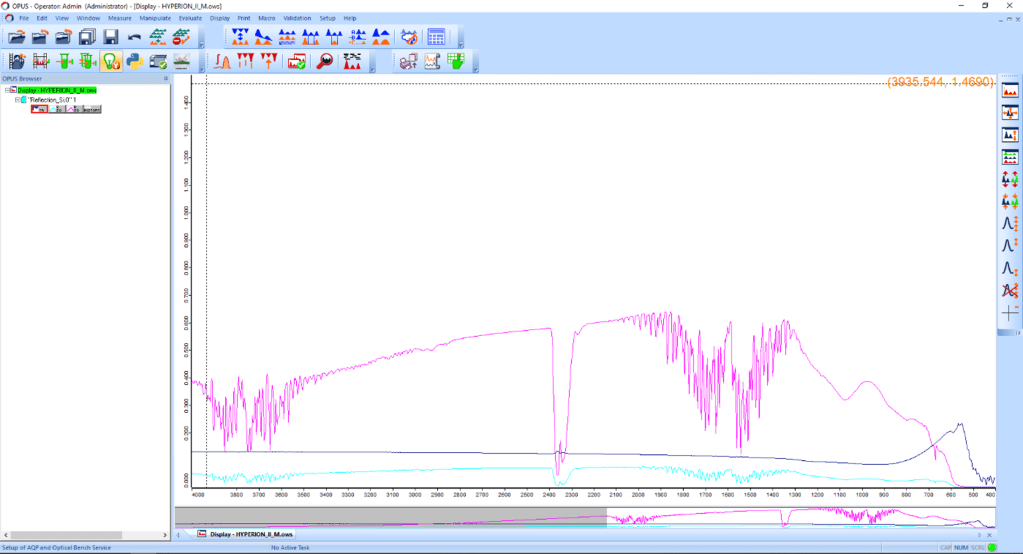

FT-IR Microscopy with HYPERION II – Bruker
Detectors
LN-MCT Mid
LN-MCT-D316-025 [Microscope]
RT-DLaTGS
TE-InGaS
LN-InSb
Range (wavenumber) [cm-1]
600 – 12000
600 – 12000
180 – 10000
4000 – 12000
2000 – 10000
Features
Performs reflection, transmission and emission measurements
Capability for steady-state and time-resolved spectroscopy
Microscope has a 15X objective
TopMap Micro.Lab TMS-1200 Profilometer – Polytec
Objectives
20X/0.4 DI
Long Working Distance 10X/0.18
Features
5-Axis Positioning Stage
Image Stitching Capabilities
Vertical Resolution
Smooth Surfaces
1.5 nanometers
Rough Surfaces
40 nanometers

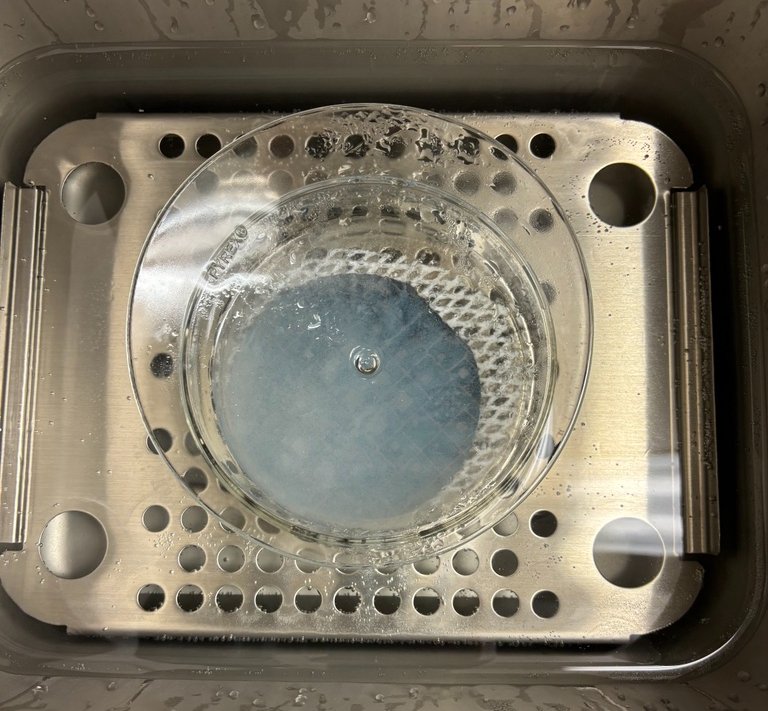

Silicon Nanoengraving Setup – KOH Etching
Available Chemicals
45% KOH solution, KOH salt, Acetone, and Isopropyl Alcohol. (Not included in the pricing)
Complete equipment and materials are provided by the facility
Pricing for Each Equipment (CAD)
Does not include the time required for the trainings and the chemicals used
Internal (uOttawa)
$50 per 3 hours
$1,000 for 12 months
External – Academic
$100 per 3 hours
$2,000 for 12 months
Non-Academic
To be negotiated per user
Micro and Nano Systems Lab
